¶ Auto Fuse
¶ Location
¶ Storage
¶ Maintence
¶ How its Made
¶ Materials
- Datak 12-607 Small Phenonlic IC Protoboard
- MC78L 05ABP Positive Voltage Regulator
- IN4001 Diodes (x2)
- 60R025X Resettable Fuse
- RN60D 1000F Resistor
- L10025-ND LED Light
- Banana Connector (2 red and 2 black)
- Hammond ABS Plastic Multipurpose Enclosures w/ Card Guides 1591 Series (1591L)
- Philips Screwdriver
¶ Instructions
- You will have to solder the components onto the protoboard. You want to solder everything onto the protoboard except the LED light. Below is a schematic of the components on the protoboard and a photo of the finished protoboard.

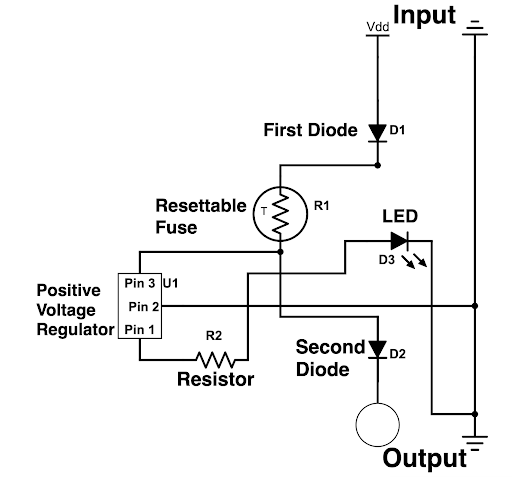

¶ Schematic for Auto Fuse

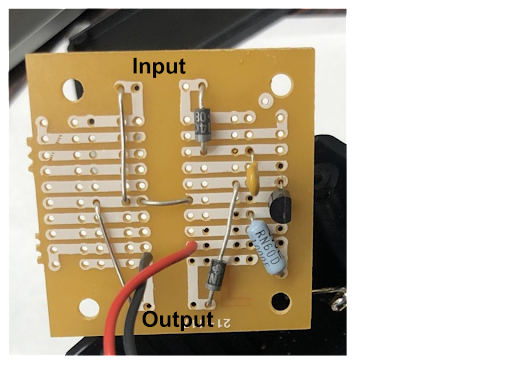

¶ Finished Photoboard
2. The wires of the LED light should be inserted into the hole on the top of the container and then soldered to the protoboard. The casing around the LED light prevents it from fitting through the hole in the container, so the wires have to be inserted first and then the LED light can be pushed into position.
¶ Wires from LED Light were Inserted into Box Before Soldering
3. Insert the wires from the two ends of ground and the first and second diodes into the banana connectors and solder them together. It is helpful to wrap the wires around the banana connectors, so that if the solder fails there is still a mechanical force holding the wire to the connector. Place the bottom on and screw it together.

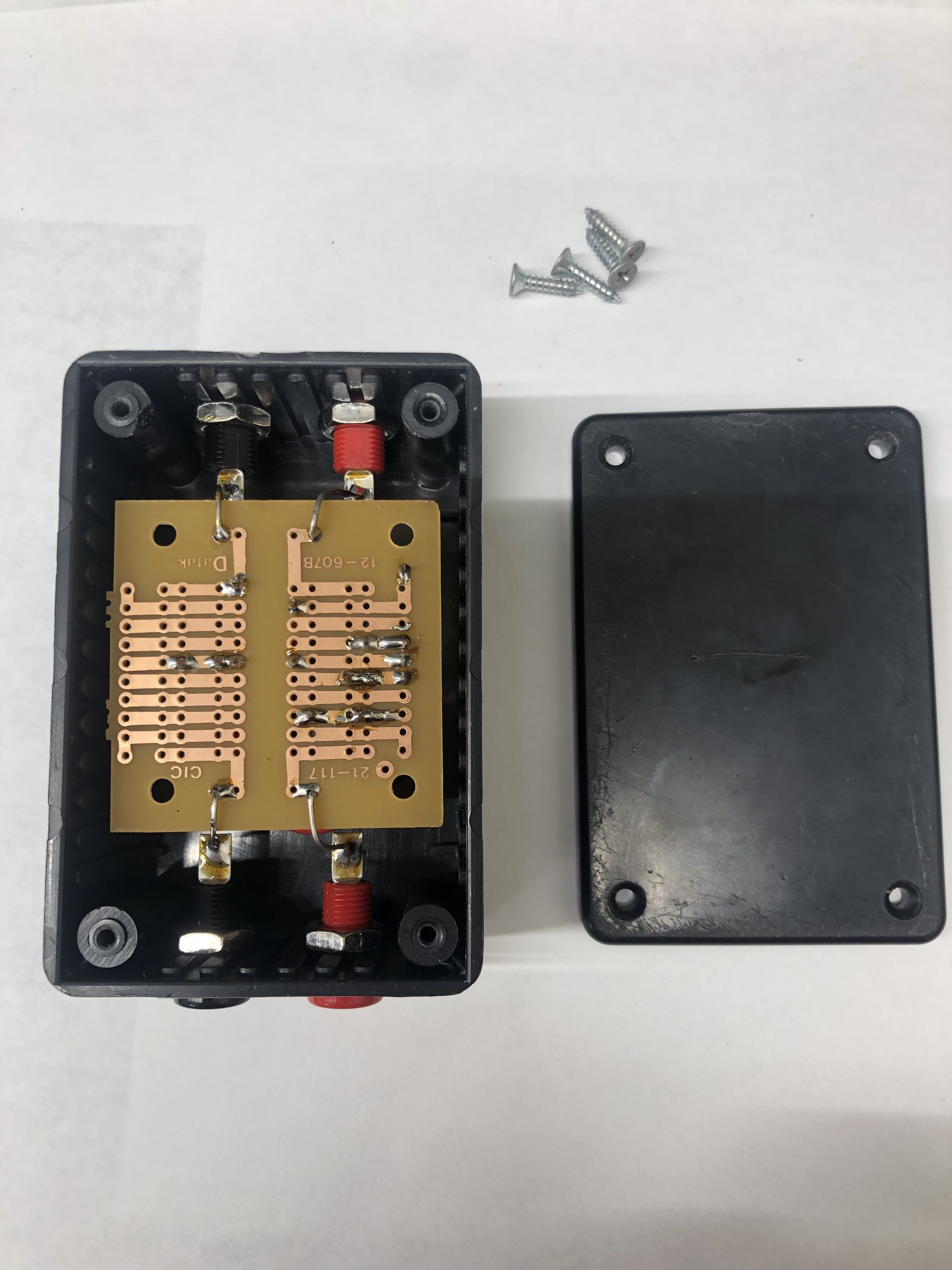

¶ Final Assembly of Auto-fuse
4. The LED should light up when correctly connected to a power supply.
